ARCORA FAUCETS
Key Features

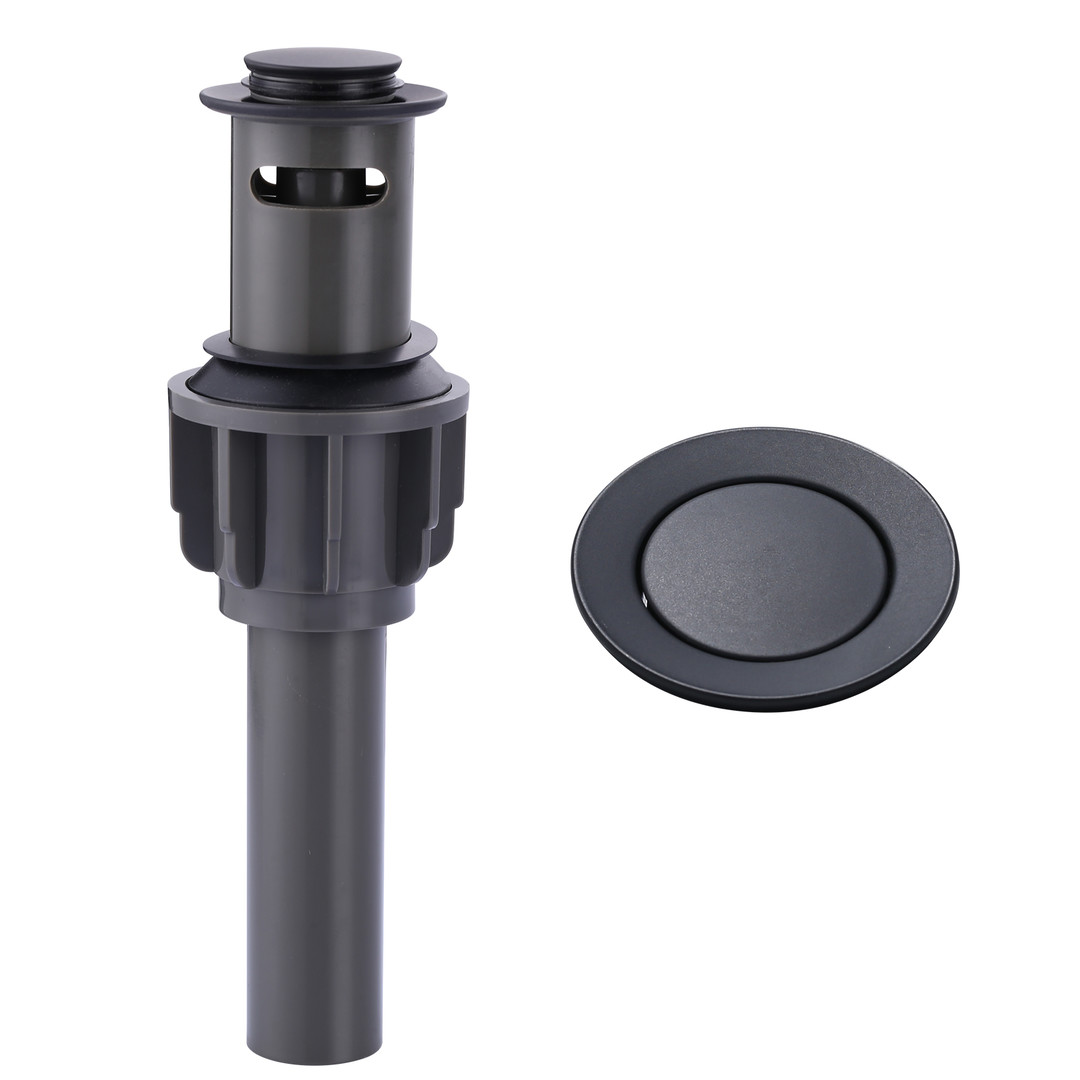

- Press-to-operate design. Push the cap down to seal the basin, push again to release. There is no lift rod or pivot linkage behind the sink, which removes the part that most commonly fails on a traditional pop-up assembly.
- Built for sinks with an overflow. The slots in the upper body line up with the basin’s overflow channel so water can escape as designed. If your sink has an overflow hole, this is the drain you need.
- Finish-matched cap. The visible cap is finished to match the drain body, so the drain reads as part of the faucet set rather than a spare part.
- Standard connection. A 1-1/4″ (Ø32 mm) tailpiece connects to common bathroom sink P-traps without an adapter.
Specifications
| Product Type | Pop-Up Sink Drain with Overflow |
| Model / SKU | X3005 series (X3005 / X3005B / X3005C / X3005G / X3005RB) |
| Cap Diameter | 2.2 in (55 mm) |
| Overall Length | 9.5 in (240 mm) |
| Body Length | 8.7 in (220 mm) |
| Tailpiece | 1-1/4 in (Ø32 mm) |
| Required Sink Hole | Minimum 1.6 in (Ø41 mm) |
| Fits Basin / Counter Thickness | 1.1 in to 2.5 in (28–64 mm) |
| Overflow | Yes — for sinks with an overflow hole |
| Available Finishes | Brushed Nickel, Matte Black, Chrome, Brushed Gold, Oil Rubbed Bronze |

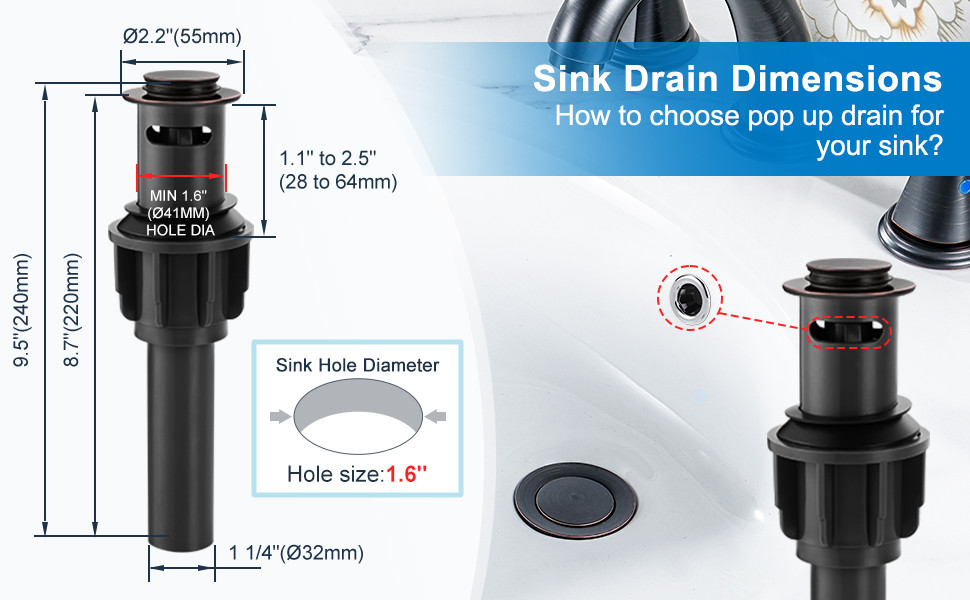

How to Choose the Right Pop Up Drain
Two measurements decide whether a pop-up drain will fit. First, check the drain hole in your basin — it needs to be at least 1.6″ (Ø41 mm) across. Second, measure how thick the basin is around that hole; this drain adjusts to anything between 1.1″ and 2.5″ (28–64 mm). Then confirm your sink has an overflow hole, because a drain built for an overflow sink and one built for a sink without an overflow are not interchangeable.
Frequently Asked Questions
Does this fit a sink without an overflow hole?
No. This model is the overflow version — the slots in the body are there to serve the basin’s overflow channel. For a vessel sink with no overflow, you need the non-overflow version instead.
Do I need a plumber to install it?
No special tools are required. The drain drops into the basin hole from above and tightens from below with the plastic nut, then connects to the existing 1-1/4″ P-trap.
Will the cap stay closed to hold water?
Yes. Press the cap once to seal the basin and hold water, press again to release and drain.
