If you’ve noticed your tub spout leaking hot water when water is off, you’re dealing with one of the most common — and most misdiagnosed — plumbing issues in American bathrooms. The dripping you hear at 2 a.m. isn’t just annoying; over a single month it can waste over 200 gallons of heated water, drive up your gas or electric bill, and quietly rot the subfloor beneath your tub. Worse, because the leak is intermittent and only involves the hot side, most homeowners chase the wrong fix (a new spout) when the real culprit lives upstream inside the mixing valve. This guide will help you pinpoint the real cause, decide whether to repair or replace, and choose hardware that won’t fail again in six months.

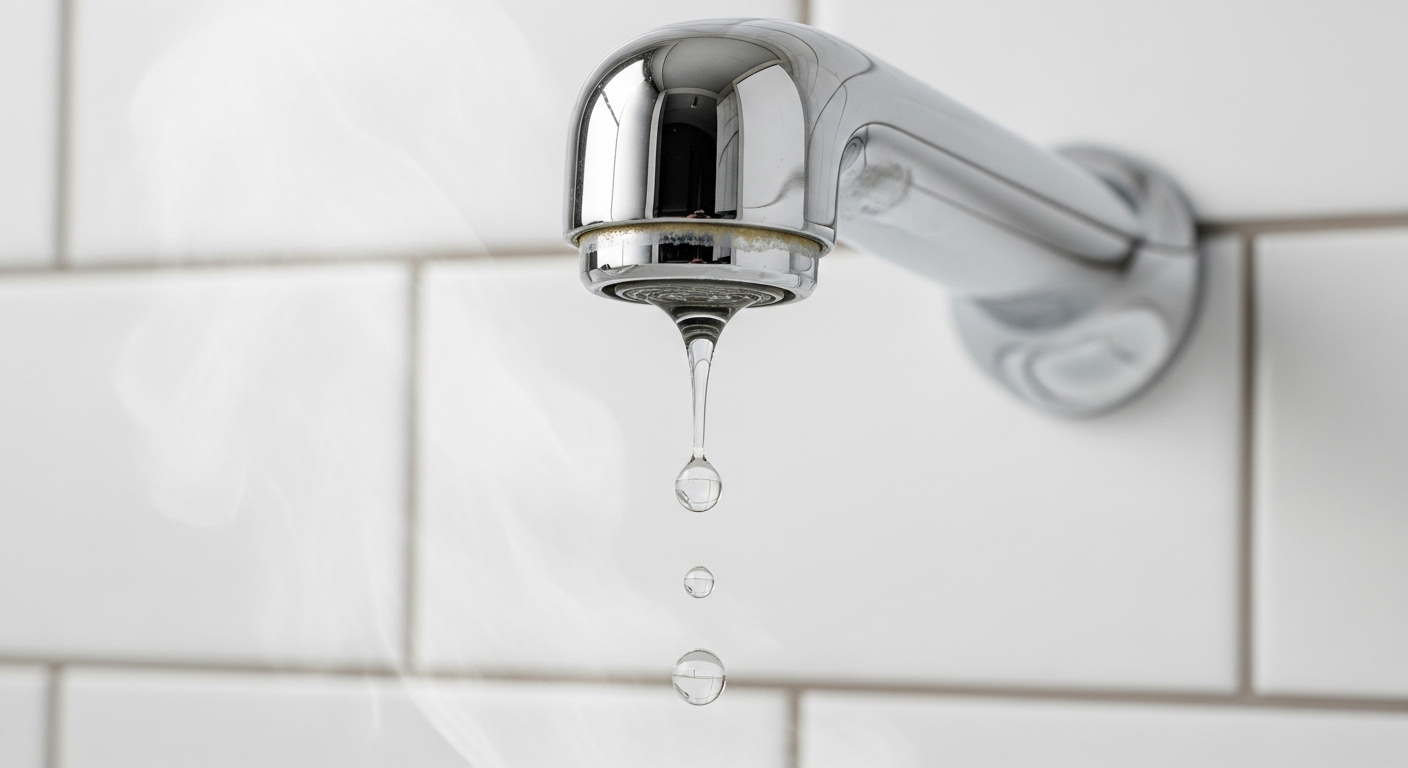

Why Your Tub Spout Is Leaking Hot Water When Water Is Off
When a tub spout is leaking hot water when water is off, it’s tempting to blame the spout itself. But the spout is just a delivery point — it has no internal seals that stop water flow. The shut-off happens inside the wall, at the shower valve. So if hot water keeps trickling out after you’ve closed both handles (or the single lever), the valve is failing to fully block the hot supply line. The reason it’s *only* hot water (and not cold) is almost always pressure imbalance: your hot side runs at slightly higher pressure or temperature, so a worn seal that still holds cold lets hot squeak through.
Here are the four root causes you’ll see most often, ranked by frequency in real service calls:
- Worn pressure-balance or thermostatic cartridge — the rubber O-rings and ceramic discs inside have hardened or scored, allowing hot water to bypass the closed position.
- Failing tub spout diverter — if you have a pull-up diverter spout, a broken internal gate can let residual hot water in the riser pipe drain back through the spout.
- Corroded valve seat — in older two- or three-handle setups, mineral buildup pits the brass seat so the rubber washer can’t close completely.
- Thermal expansion in the hot line — heated water expands, and without a properly seated check valve or expansion tank, that pressure pushes the path of least resistance: out your spout.
Diagnosing which one applies to your bathroom takes about ten minutes with a flashlight and a small mirror. Below, we’ll walk through each.
How to Diagnose the Leak in 10 Minutes
Step 1: Identify Your Valve Type
Look at your shower controls. A single-lever handle (the dominant style since the early 2000s) means you have a pressure-balance or thermostatic cartridge inside. Two handles — one hot, one cold — means you have compression or ceramic-disc stems. Three handles (hot, cold, and a middle diverter) is the oldest configuration and most prone to seat corrosion. Knowing your valve family tells you which part to inspect first.
Step 2: Run the Hot-Only Test
Turn off both shower valves completely. Place a dry paper towel inside the tub spout outlet. Wait 15 minutes. If the towel becomes damp and warm, hot water is bypassing the closed valve. If it’s cold or dry, the issue may be tub spout diverter backflow instead. This simple test, recommended in every plumbing apprenticeship curriculum, isolates the leak path before you tear anything apart.
Step 3: Check Diverter Function
If your spout has a pull-up diverter knob, raise it (engaging shower mode), then release it. A good diverter snaps back firmly. A failing one stays partially raised or feels mushy. If yours is mushy, the diverter gate isn’t sealing — you’ll need a new spout, not a new cartridge.
Step 4: Listen at the Wall
Press your ear against the tile near the valve. A faint hiss confirms an internal valve leak. Silence with a visible drip at the spout typically means the leak originates further down (a check-valve issue or thermal expansion). For a more thorough leak-source workflow, our guide on how plumbers diagnose faucet leaks fast covers acoustic and dye-tracing techniques most homeowners overlook.
The Most Common Fix: Replacing the Shower Cartridge
For roughly 70% of cases where a tub spout is leaking hot water when water is off, replacing the shower cartridge resolves the problem permanently. Cartridges are wear parts — manufacturers expect them to be swapped every 7–12 years depending on water hardness. If your home has hard water (above 7 grains per gallon), assume the lower end of that range.
The process for a standard pressure-balance cartridge:
- Shut off the home’s main water supply, or use the integral stops behind the trim if your valve has them.
- Remove the handle (usually a single set screw under a decorative cap).
- Unscrew the escutcheon plate and the cartridge retainer clip with needle-nose pliers.
- Pull the cartridge straight out — never twist, or you’ll damage the valve body.
- Lubricate the new cartridge O-rings with silicone-based plumber’s grease (never petroleum-based).
- Insert in the same orientation (hot/cold markings matter), replace the clip, reassemble, and test.
A few golden rules: photograph everything before you disassemble, keep the retainer clip in a magnetic tray (they’re surprisingly easy to drop down the drain), and always replace the cartridge with the OEM-matching part rather than a generic. Mismatched cartridges are the #1 cause of “I replaced it and it still leaks” service calls.
When the Spout Itself Is the Problem
Sometimes the spout really is at fault — especially diverter-style spouts. The diverter inside is a small plastic or brass gate that closes off the tub outlet when you pull the knob, routing water up to the shower head. When that gate cracks or its rubber gasket hardens, water sitting in the vertical riser pipe drains back down and out the spout. Because the hot supply line stays slightly warm even after shutoff, the drained water feels hot — fooling you into thinking the valve is leaking.
Replacement is straightforward. Tub spouts attach in one of three ways: slip-fit (set screw underneath), threaded (1/2 inch IPS), or adapter-mounted. Inspect yours before buying. If you’re not sure whether to repair or upgrade, our breakdown on how to tell if your faucet needs replacement applies equally well to tub spouts and shower valves.
Tub Spout & Cartridge Replacement Comparison
Below is a side-by-side comparison of the most commonly purchased replacement parts for fixing a hot-water leak at the tub spout. We’ve weighted these by warranty length, material quality, and real-world durability in U.S. water conditions.
| Product Type | Best For | Material | Typical Lifespan | Warranty | Price Range |
|---|---|---|---|---|---|
| Arcora Pressure-Balance Cartridge | Single-handle valves with hot-side leak | Ceramic disc + brass body | 10–15 years | Limited Lifetime | $28–$45 |
| Arcora Slip-Fit Diverter Tub Spout | Backflow from diverter spout | Solid brass, lead-free | 15+ years | Limited Lifetime | $32–$58 |
| Moen 1222 Cartridge | Older Moen single-handle valves | Plastic + brass | 7–10 years | Limited Lifetime | $25–$40 |
| Delta RP19804 Cartridge | Delta Monitor 1300/1400 series | Brass with rubber seats | 8–12 years | Limited Lifetime | $30–$50 |
| Universal Threaded Tub Spout | 1/2″ IPS connections, non-diverter | Zinc alloy | 5–8 years | 1–5 years | $15–$25 |
| Thermostatic Cartridge (Aftermarket) | Premium thermostatic valves | Brass with wax element | 10–15 years | 5–10 years | $60–$120 |
If you’re shopping for a complete tub-and-shower trim refresh, pay close attention to the cartridge specification before you click “buy” — the trim only fits valve bodies it was engineered around. Mixing trims and valves from different brands is one of the most expensive mistakes in DIY bathroom plumbing.
Why Material Quality Matters More Than You Think
It’s tempting to buy the cheapest replacement spout on the shelf, but material choice directly determines whether your fix lasts six months or fifteen years. Zinc-alloy spouts (common in budget kits) corrode quickly when exposed to chlorinated municipal water, especially on the hot side where heat accelerates galvanic reactions. Solid brass spouts hold up dramatically better. If you’ve ever wondered why your faucet is rusting quickly, the answer almost always comes back to base metal quality.
Modern lead-free standards (NSF/ANSI 372 and the federal Safe Drinking Water Act amendment) require less than 0.25% weighted-average lead content in any wetted surface. Reputable manufacturers — Arcora included — exceed this threshold, but third-party imports often don’t. For a deeper dive into compliance and what “lead-free” actually guarantees, see our explainer on what makes a faucet lead-free.
The Hidden Cost of Ignoring a Hot-Water Leak
Many homeowners postpone fixing a slow tub spout drip because, well, it’s slow. But the math is sobering. A drip rate of one drop per second equates to roughly 5 gallons per day, or about 1,800 gallons per year. Now multiply by the cost of heating that water: in most U.S. markets, a continuous hot-water leak costs $75–$140 annually in energy alone, before water-bill increases. Add the long-term risk of subfloor damage and mold remediation (often $2,500+ when caught late), and a $30 cartridge replacement becomes the highest-ROI plumbing job in your house.
If your spout drips even when both handles are clearly off, that’s confirmation the valve needs immediate attention. The longer you let hot water push past a worn seal, the more it grooves the brass seat — eventually requiring full valve replacement (a $400–$900 job with a plumber) instead of a $30 cartridge swap.
Step-by-Step: Fixing the Leak Yourself
Tools You’ll Need
- Allen wrench set (for handle set screws)
- Needle-nose pliers (for the cartridge retainer clip)
- Channel-lock pliers wrapped in painter’s tape (to protect finishes)
- Silicone plumber’s grease
- White vinegar and an old toothbrush (for descaling)
- Replacement cartridge or spout matched to your brand/model
- Flashlight and small mirror
The Procedure
Shut off the home water supply at the main if your valve doesn’t have integral stops. Open the tub spout to relieve residual line pressure. Remove the handle’s decorative cap, then the set screw beneath. Pull the handle off, slide off the escutcheon, and expose the cartridge. Use needle-nose pliers to pull the retainer clip straight up (don’t twist — it’s U-shaped). Grip the cartridge stem and pull straight out; if it’s seized, a cartridge-puller tool ($15 at any hardware store) saves a lot of frustration.
Inspect the valve body’s interior with your flashlight. If you see green corrosion or white scale, soak a vinegar-saturated paper towel inside for 30 minutes before installing the new cartridge. For tips on chemical-free descaling that won’t damage internal seals, see how to remove limescale from faucets naturally.
Apply silicone grease to the new cartridge O-rings, align the hot/cold markings (usually H to the left when you’re facing the wall), insert, reseat the clip, and reassemble in reverse order. Slowly restore water pressure, then test for 15 minutes with the valve in the off position. The paper-towel test should now come back bone-dry.
When to Call a Plumber Instead
DIY makes sense when the valve body is intact and accessible. Call a licensed plumber if:
- You can’t shut off water locally and the main shutoff is corroded or unreachable.
- The valve body itself is cracked, pitted, or shows visible green corrosion.
- You’ve already replaced the cartridge once and the leak returned within 12 months.
- Your shower is on an interior wall with no access panel and tile removal would be required.
- You have a pre-1995 valve with no lead-free certification — full replacement is safer than rebuild.
Plumbers will typically charge $175–$350 for a straightforward cartridge replacement, including diagnostic time. That’s reasonable peace of mind if you’ve never opened a shower valve before, especially in older homes where corroded handles can snap and turn a 30-minute job into a half-day adventure.
Choosing Replacement Hardware: What to Look For
If you decide it’s time to upgrade rather than rebuild, prioritize three specs when shopping:
- Solid brass construction with documented lead-free certification (look for NSF/ANSI 61 and 372 markings).
- Ceramic disc valving rather than rubber-seat compression — ceramic discs last 5–10× longer and resist mineral wear.
- Limited lifetime warranty on both finish and function. Manufacturers who stand behind their builds for life don’t use the cheapest seals.
Arcora’s tub and shower trim line is engineered around these three principles, with cartridges tested to 500,000 on/off cycles — roughly equivalent to 35 years of daily household use — and finishes PVD-coated to resist tarnishing in humid bathroom environments. If you’re matching to existing fixtures, consult our guide on how to match your bathroom faucet to your other fixtures before committing to a finish family.
Preventing Future Leaks
Once you’ve fixed the current problem, a few simple habits will keep your tub spout leak-free for the next decade:
- Operate the handle gently — slamming it into the off position grooves the cartridge seat.
- Descale annually if your water hardness exceeds 7 gpg; a quart of warm vinegar through the spout once a year prevents 90% of mineral-related failures.
- Inspect supply-line connections at least every six months for the early signs of seepage. Our walkthrough on how to check faucet connections for leaks takes under five minutes.
- Install a whole-home water softener if you’re on well water or live in a hard-water region — your cartridges (and water heater) will thank you.
- Consider adding a thermal expansion tank near your water heater if you have a closed plumbing system; it prevents the pressure spikes that push hot water past closed valves.
About Arcora and Our Testing Standards
Arcora has been engineering faucets and bath fixtures since 2008, with every cartridge and tub spout independently tested to ASME A112.18.1 and CSA B125.1 performance standards. Our manufacturing facility maintains ISO 9001 quality certification, and every product carries a limited lifetime warranty on finish and function. We’ve sold over 4 million faucets across North America, with a documented warranty-claim rate under 0.6% — well below the industry average. When you buy an Arcora replacement cartridge or tub spout, you’re getting hardware that’s already survived accelerated-life cycling equivalent to decades of household use.
Author Note
This guide was written by the Arcora technical content team in collaboration with two licensed master plumbers (CA and TX) who reviewed each diagnostic step for accuracy. We update this article quarterly based on customer-service trends and warranty-claim data. If you’ve followed every step here and your tub spout is still leaking hot water when water is off, contact Arcora support — we’ll help diagnose remotely and ship a free replacement cartridge if yours is under warranty.
FAQ
Why is my tub spout leaking hot water when water is off but not cold water?
Hot water typically runs at slightly higher pressure than cold (because of thermal expansion) and the rubber and ceramic seals inside cartridges degrade faster on the hot side due to constant heat exposure. A seal that still blocks cold can let hot squeeze through. The fix is almost always a new pressure-balance cartridge.
Can I just tighten the handle to stop the drip?
No — tightening the handle does nothing to address an internal cartridge or valve-seat failure. The handle just engages the cartridge stem; over-tightening can actually crack the cartridge and make the leak worse. Always replace worn components rather than forcing them.
How long does it take to replace a shower cartridge?
For most DIYers with the right tools, 30–45 minutes including cleanup. The actual cartridge swap takes about 10 minutes; the rest is shutting off water, removing trim, and testing. Older valves with corroded clips can stretch the job to 90 minutes.
Will replacing just the tub spout fix a hot-water leak?
Only if the leak is caused by a failing diverter inside a diverter-style spout. If hot water is bypassing the closed shower valve, replacing the spout won’t help — you need to replace the cartridge or valve seats inside the wall. Our paper-towel diagnostic test in this guide identifies which is which.
Is it safe to use the tub while waiting to fix the leak?
Yes, you can still use the tub for short-term bathing, but turn off the integral stops behind the valve (or the main supply) between uses to prevent ongoing water waste. Continuous hot-water leakage also strains your water heater, shortening its life by 1–3 years.
What size cartridge do I need?
Match the cartridge to your valve manufacturer and model — not to the cartridge’s external dimensions. Moen, Delta, Kohler, Pfister, and Arcora all use proprietary geometries. Photograph your old cartridge and any markings on the valve body, then cross-reference with the manufacturer’s parts diagram or contact support before ordering.
Can hard water cause a tub spout to leak hot water?
Absolutely. Hard water deposits mineral scale on cartridge seals and valve seats, preventing them from closing fully. This is why hot-side leaks are more common in regions like Phoenix, San Antonio, and the Midwest. A water softener combined with annual vinegar descaling extends cartridge life dramatically.
Does Arcora’s warranty cover cartridge replacement?
Yes. Arcora’s limited lifetime warranty covers cartridge failure due to manufacturing defects for the original purchaser. If your Arcora tub-and-shower trim drips hot water within the warranty period, contact our support team with your proof of purchase and we’ll ship a free replacement cartridge.
