How Do You Install a Shower Faucet in New Construction (Step-by-Step)?

If you’ve ever wondered how to install shower faucet new construction setups correctly the first time — before drywall, before tile, before there’s any chance of a callback — you’re in the right place. New construction is actually the easiest scenario to plumb a shower, because the studs are open, you can see every joint, and you can pressure-test the system without tearing anything apart. But “easiest” doesn’t mean “forgiving.” A valve mounted half an inch too deep, a riser that’s an inch off-center, or a forgotten plaster guard will cost you a tile-cutting nightmare later. This guide walks you through the entire process the way a working plumber actually does it on the jobsite in 2026 — with the exact measurements, the order of operations, and the small details (like which way the hot inlet faces) that separate a clean install from a rework.

Written and reviewed by the Arcora Faucet engineering team — we manufacture pressure-balanced and thermostatic shower valves that meet ASME A112.18.1/CSA B125.1 and are tested to 500 PSI burst pressure, so the rough-in details below come straight from the install instructions we ship with every valve.

What does “new construction” actually mean for a shower faucet?

New construction means the wall is open — studs exposed, no drywall, no tile, no backerboard — and you have full access to drill, brace, solder, and route supply lines from behind. This is the install scenario every shower-valve manufacturer designs for. You’re not fishing pipes through a 4-inch access panel or cutting tile to retrofit a deeper valve. You can stand inside the wet wall, mount the valve dead-square to the finished surface, and bracket it to a cross-member so it never moves.

The distinction matters because the rough-in valve body, the plaster guard depth, and the trim kit you’ll install months later are all calibrated to a specific finished-wall thickness. Most modern valves accept a finished-wall depth range of about ⅜” to 1¾” from the front of the valve body to the finished tile face. If you mount it too deep, the trim plate won’t reach; too shallow, and the handle won’t seat. Getting this right in the rough-in stage is the entire game.

What tools and materials do I need before I start?

You need a pressure-balanced or thermostatic rough-in valve, ½-inch supply lines (copper, PEX, or CPVC), a drop-ear elbow for the shower arm, a torch and solder (or PEX crimp/expander tool), a level, a tape measure, a stud finder, and a 2×4 for the cross brace. That’s the short list — but on a real jobsite the small stuff is what saves you.

• Rough-in valve — pressure-balanced is code-required in most U.S. jurisdictions per ASSE 1016 to prevent scald injuries
• Plaster guard / mud guard — comes with the valve; never remove it until tile is set
• ½” copper Type L or ½” PEX-A for supply lines (PEX-A is more forgiving in freeze conditions)
• Drop-ear elbow for the shower arm, anchored to a horizontal blocking board
• 2×4 or 2×6 cross brace cut to fit between the studs
• Pipe strap or Holdrite bracket to secure risers every 32 inches
• Teflon tape (yellow for gas, white for water — use white)
• Lead-free solder and flux if soldering copper — required by the Safe Drinking Water Act
• Test cap for the shower-arm outlet so you can pressure-test before tile
• Torpedo level and 4-foot level — the valve must be plumb and square to the finished wall

One material note: if you’re using PEX, make sure your valve has PEX-compatible inlets or use the manufacturer’s PEX adapter. Don’t crimp PEX directly to a sweat-only valve body with a generic fitting unless the valve manufacturer explicitly approves it — that’s a leak waiting to happen behind your finished tile. Brands that prioritize universal compatibility (a topic we’ve covered in our breakdown of whether all faucets are universal fit) usually ship multiple inlet options in the box.

At what height should I install the shower valve and shower head?

Install the valve body 42-48 inches above the finished floor for a standalone shower, or 28-32 inches for a tub/shower combo. The shower arm drop-ear elbow goes at 78-80 inches above the finished floor, and the tub spout drop (if applicable) goes 4 inches above the tub rim. These are industry-standard heights that match every major trim kit’s escutcheon dimensions.

Height variations matter for accessibility and ergonomics. If anyone in the household is over 6’2″, bump the shower arm to 82-84 inches. For ADA-compliant installs, the valve goes 38-48 inches from the floor with a hand shower included. The valve height isn’t arbitrary — it’s set so the handle is reachable from outside the spray, and so the rough-in plumbing has room to route cleanly without crossing the drain or vent stack.

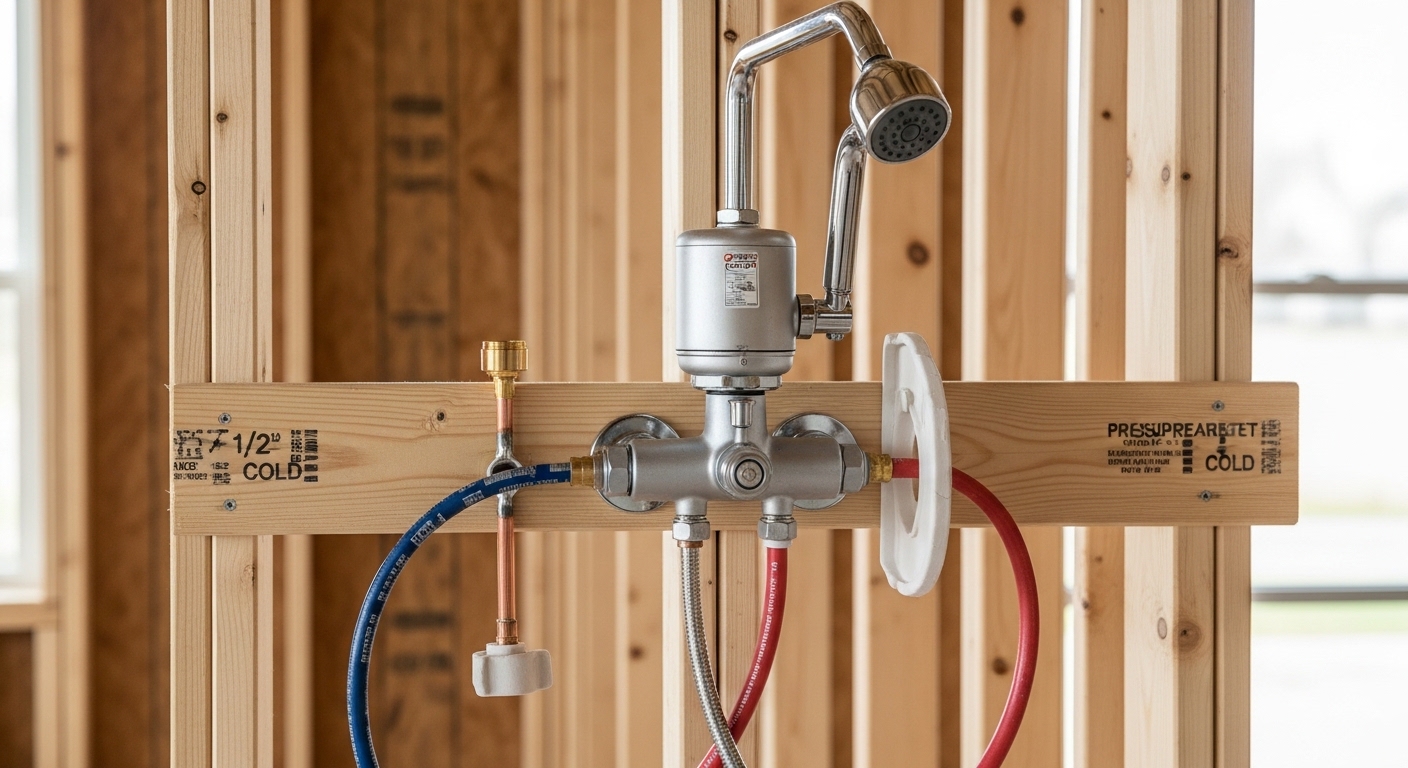

How do I rough in the supply lines correctly?

Run ½-inch hot on the left and ½-inch cold on the right as you face the valve from outside the wall — this is universal across every U.S. manufacturer. Connect them to the valve’s labeled “H” and “C” inlets, then secure both lines to the cross brace within 6 inches of the valve so any handle force transfers to the framing, not the solder joints.

Here’s the order of operations a professional plumber follows:

1. Locate the studs and decide which stud bay will hold the valve. You want at least 14½” of clear width between studs.
2. Cut and install the 2×4 cross brace between the studs at your chosen valve height. Use 3″ deck screws or 16d nails through the studs into the brace ends. This brace carries the valve — it cannot move.
3. Mount the valve to the brace using the included mounting ears or a Holdrite-style bracket. The valve body should sit so the plaster guard’s front face is flush with the finished wall surface (account for ½” drywall + ¼” backerboard + tile + thinset — typically 1″ to 1¼” forward of the stud face).
4. Check the valve orientation — most valves have a “UP” arrow stamped on the body. Get this wrong and your handle will point sideways.
5. Connect hot to the left inlet, cold to the right. If you’re soldering, remove the cartridge first (heat will destroy the rubber seals) — or use a heat sink. If you’re using PEX, make your crimp connections per the manufacturer’s spec.
6. Run the riser up from the valve’s top outlet to the shower arm drop-ear elbow at 78-80″. Use a vertical pipe strap every 32″ to prevent any “thump” when the water turns on.
7. If it’s a tub/shower combo, run a second short drop from the valve’s bottom outlet to the tub spout drop-ear at 4″ above the tub rim.
8. Cap the shower arm and tub spout outlets with test caps.
9. Pressure-test at 80 PSI for 15 minutes. Check every joint with soapy water.
10. Leave the plaster guard on. Do not install trim until tile is set and grouted.

The cross brace is the single most overlooked step in DIY installs. Without it, the valve “floats” on the supply lines, and every time someone yanks the handle, you’re flexing the solder joints. We’ve seen valves pull right out of the wall on cheap installs because someone skipped the brace. If you need a refresher on how to verify those joints don’t leak after pressurizing, our guide on how to check faucet connections for leaks covers the soapy-water and gauge-drop methods in detail.

Pressure-balanced vs. thermostatic vs. diverter — which valve do I actually need?

For a single-head shower in a typical home, install a pressure-balanced valve — it’s code-required in most states, costs less, and prevents scald when someone flushes a toilet. Upgrade to thermostatic if you want set-it-and-forget-it temperature (luxury master baths), or to a thermostatic + diverter combo if you have multiple outlets like a rain head plus a hand shower.

One thing buyers get wrong: assuming “more expensive valve = more pressure.” It doesn’t. Flow rate is dictated by the EPA WaterSense cap (1.8 GPM for shower heads sold after 2020) and your incoming supply pressure (40-80 PSI is the residential norm). What you pay extra for in a thermostatic valve is temperature stability — it’ll hold ±2°F even if someone runs the washing machine. If you’re trying to decide where to put your money, our piece on when to splurge vs. save on faucets applies almost identically to shower valves.

How do I pressure-test before closing the wall?

Cap every outlet with a brass test cap, open both hot and cold supplies to pressurize the valve to your house pressure (typically 60-80 PSI), close the inlets at the manifold, and watch for any drop on a pressure gauge over 15 minutes. Zero drop = pass. Any drop = find the leak before the drywall goes up.

This is the step homeowners skip and pros never do. Once the tile is on, finding a slow weep at a soldered joint means cutting out finished tile, possibly cutting a hole in the back wall, and explaining to the client why their new bathroom is a construction zone again. Spend the extra 20 minutes now.

Practical pressure-test tips:

• Use a 0-160 PSI gauge with a Schrader valve adapter so you can pump it up to test pressure.
• If your house pressure is below 60 PSI, use an air compressor to bump the test to 80-100 PSI — but never exceed the valve manufacturer’s rated test pressure (usually 125 PSI).
• Brush soapy water on every joint. Bubbles = leak. Even pinhole leaks show up immediately.
• Watch the gauge for 15 minutes minimum. A 1 PSI drop matters — that’s a real leak.
• If you’re in a freezing climate, drain the test water completely before walking away. A trapped pocket can split copper.

What are the most common mistakes DIYers make on shower valve rough-in?

The big four: mounting the valve at the wrong depth so the trim doesn’t fit, skipping the cross brace so the valve wiggles, soldering with the cartridge installed (which melts the seals), and forgetting to leave the plaster guard on during tile work. Each of these costs hours of rework and sometimes a full re-tile.

Other recurring mistakes worth flagging:

• Reversed hot and cold — easy to do if you don’t mark your lines before soldering. Always face the valve from the room side and put hot on the left.
• No isolation valves — install ¼-turn ball valves on each supply line where they branch off the main, so you can service the shower without shutting off the whole house.
• Riser too tight against the stud — leave at least ½” of clearance so the pipe can expand and contract without creaking.
• Drop-ear elbow not anchored — every time you torque on a shower arm, you’ll loosen a free-floating drop-ear. Screw it to backing.
• Using galvanized fittings on copper — dissimilar metals cause galvanic corrosion. Use brass or dielectric unions if you must transition.
• No air gap above the riser — some old plumbers add a 6-12″ capped vertical “water hammer arrestor” above the valve. Modern installs use a manufactured arrestor instead, but the principle still matters.

If you’re swapping a valve in an older home rather than doing fresh new construction, the removal process can be a whole separate adventure — we walk through one common scenario in our guide on how to remove an old Moen bathroom faucet, and the principles transfer to shower valves with the same brand.

How do I install the trim kit after the tile is done?

Once tile and grout are cured, remove the plaster guard, slide the escutcheon plate over the valve stem, seal the escutcheon to the tile with a thin bead of 100% silicone (not acrylic caulk — silicone resists mildew and moves with the tile), install the cartridge if it isn’t already, and thread on the handle. Turn the water back on slowly and check for leaks at the trim seal.

A few finish-stage details:

• Apply silicone to the back of the escutcheon, not the wall — it makes future service cleaner.
• Leave a small ¼” gap at the bottom of the escutcheon (sometimes called a “weep gap”) so any water that gets behind the trim can escape and signal a leak before it rots framing.
• Thread the shower arm into the drop-ear with 3-4 wraps of white Teflon tape, hand-tight plus ¼ turn with a strap wrench. Never use a pipe wrench directly on a finished arm — you’ll mar the finish.
• If your trim is matte black or brushed gold, be extra careful with handle marks during install. Our guide on shiny vs. matte faucet finishes covers how each finish wears over time.

FAQ

Do I need a permit to install a shower faucet in new construction?

In most U.S. jurisdictions, yes — any new plumbing on a permitted construction project falls under the existing building permit. If you’re a homeowner doing a DIY new-build addition, check with your local building department. The inspector will typically want to see the rough plumbing pressurized before the wall is closed. Failing inspection because you sealed the wall early is the most common rookie mistake.

Can I use PEX instead of copper for shower valve supply lines?

Yes, PEX-A or PEX-B is fully code-compliant for shower supply lines under the IPC and UPC, and it’s more freeze-tolerant than copper. Just confirm your valve has PEX-compatible inlets or use the manufacturer’s adapter. Anchor PEX with proper Holdrite-style brackets — it expands and contracts more than copper, so unsecured PEX can knock against framing.

How deep should the shower valve sit in the wall?

The plaster guard’s front face should be flush with the finished tile surface — not the drywall, not the backerboard. Most valves accept a finished-wall depth range of ⅜” to 1¾”. Measure your total wall stack: ½” drywall + ¼” backerboard + thinset + tile (usually ⅜” total for finish). Mount the valve so the plaster guard’s outer edge ends up flush with that final tile face.

What’s the difference between a rough-in valve and a trim kit?

The rough-in valve is the brass body buried in the wall that handles the actual hot/cold mixing and pressure balance. The trim kit is the visible part — the handle, escutcheon, and shower head — that you install after tile is finished. You buy them separately on most premium lines (Arcora included) so you can change the finish later without re-plumbing.

Can I install the shower valve before the tub goes in?

Yes, and you should. For a tub/shower combo, set the tub first to verify the rim height, then rough in the valve at 28″ above the tub deck and the spout drop at 4″ above the rim. Roughing in before the tub is set means you’re guessing at the final heights, and tub manufacturers vary by ¾” or more.

How long does a new construction shower rough-in take?

For an experienced plumber, 2-3 hours per shower including pressure test. For a careful DIYer doing their first install, plan a full day — most of that time is making sure the valve depth and height are perfect, and pressure-testing. The actual soldering or PEX crimping is maybe 30 minutes.

Does Arcora ship a rough-in valve and trim together?

Yes — every Arcora shower system ships with both the ASSE 1016-certified rough-in valve and the matching trim kit, packaged together so you don’t have to cross-reference compatibility codes. All valves are pressure-tested to 500 PSI, carry a limited lifetime warranty on the brass body and ceramic cartridge, and meet NSF 61 lead-free standards under the Safe Drinking Water Act.
