What Are the Correct Tub Shower Valve Rough In Dimensions for a Standard Bathroom?

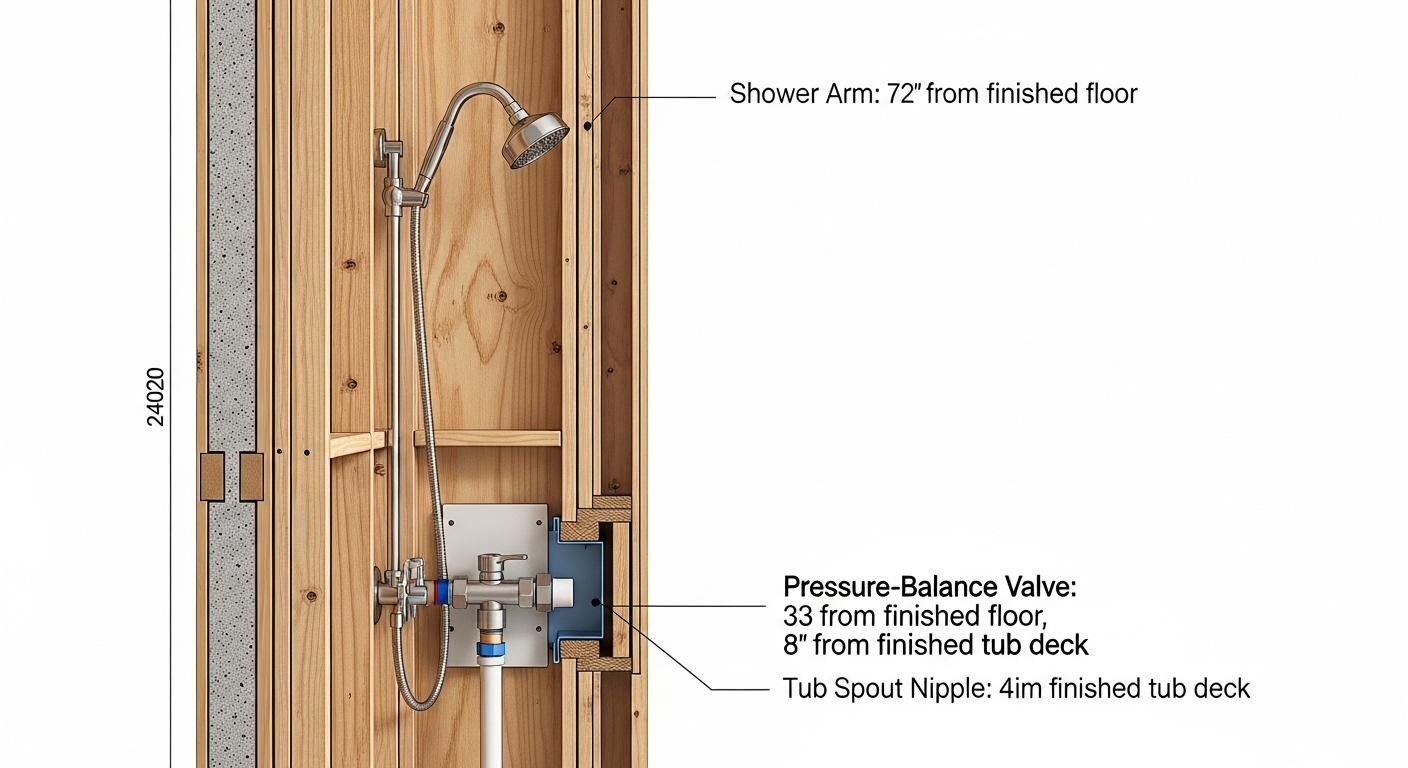

Getting the tub shower valve rough in dimensions right is the single most important step in any shower install, because once the tile goes up and the wall is closed, a valve that’s an inch too deep or 6 inches too low becomes a demolition job — not a quick fix. The good news: these dimensions are standardized, forgiving within a range, and easy to nail if you measure from the right reference point. Below I’ll give you the exact heights, the tolerances that actually matter, and the mistakes that send DIYers back to the drywall.

This guide covers a typical residential tub/shower combo with a single-handle pressure-balance valve — the most common setup in North American homes. Whether you’re roughing in new construction or replacing an old three-handle valve, the same reference points apply.

What height should a tub shower valve be roughed in at?

Set the valve body 28 to 32 inches above the finished tub floor for a tub/shower combo, or 42 to 48 inches for a shower-only stall where there’s no tub to reach over. The exact number is a comfort choice within that band — most plumbers default to 30 inches for a combo because it lands at a natural reach whether you’re sitting in the tub or standing in the shower.

The key phrase is finished floor. Your valve height should be measured from the top surface of the installed tub deck, not the subfloor and not the bottom of the framing. If you measure to the rough framing and forget the tub’s height plus the thickness of any mud bed, you can end up several inches off.

Here’s why the range exists. A pressure-balance valve has to be reachable, but it also needs to clear the tub spout below it and leave room for the shower arm above it. Within 28–32 inches you satisfy all three. Go much lower and the handle crowds the spout; go much higher and short users struggle to reach it from inside the tub.

• Tub/shower combo valve: 28–32 in. above finished tub floor (30 in. is the common default)
• Shower-only valve: 42–48 in. above finished shower floor
• Tub spout: 4 in. above the tub rim (top of spout to rim)
• Shower arm/head: 72–78 in. above finished floor (78 in. suits taller households)
• Hand-shower slide bar: typically 48–72 in., user preference

How far apart should the tub spout, valve, and shower head be?

On a standard combo, the tub spout drop ell sits about 4 inches above the tub rim, the valve centers around 30 inches above the finished tub floor, and the shower arm exits the wall at 72–78 inches — so you’re looking at roughly 18–20 inches of vertical space between the spout and valve, and another 40-plus inches up to the shower arm. All three should share the same horizontal centerline, dead-center on the tub’s long wall.

The vertical spacing matters for one practical reason: a diverter tub spout needs enough clearance below the valve so your hand isn’t fighting the handle when you pull the diverter, and enough drop from the spout to the tub so the stream clears the rim without splashing the wall. Four inches above the rim is the sweet spot — high enough to fill comfortably, low enough that the spout’s diverter still works under gravity.

One alignment tip that saves headaches: snap a vertical chalk line on the studs at the tub’s centerline before you mount anything. Mount the valve, spout drop, and shower arm to that single line. Nothing looks worse on finished tile than a spout that’s a half-inch off from the valve above it.

How deep should the valve sit in the wall?

The valve’s mounting depth is controlled by the plaster guard (the plastic cap that ships on the valve) — it must end up flush with, or slightly proud of, your finished wall surface, meaning tile plus thinset plus backer board. Most pressure-balance valves have a marked depth range stamped right on the plaster guard, usually accommodating finished walls from about 1/2 inch to 1-3/4 inches off the framing.

This is where more installs go wrong than any height measurement. People mount the valve flush to the studs or backer board and forget the tile sits another 1/4 to 1/2 inch forward. Then the trim plate (escutcheon) won’t seat against the wall, or the handle won’t reach far enough to engage the cartridge stem.

Always dry-fit your finished wall thickness before you set the valve. Stack a scrap of backer board and a tile against the framing, measure the total, and adjust the valve so the plaster guard reads correctly against that face. Five minutes here prevents a wall full of regret. If you want a fuller walkthrough of the whole sequence, our guide on how to install a shower faucet in new construction covers the bracing and supply routing step by step.

Does the rough-in change for a shower-only versus a tub/shower combo?

Yes — the valve goes higher in a shower-only stall (42–48 inches versus 28–32 for a combo) and there’s no tub spout to rough in at all. Everything else — the shower arm height, the 1/2-inch supplies, the flush plaster guard — stays the same.

The logic is simple: in a combo you reach the valve from inside the tub or while standing, so it sits low enough to operate while seated. In a walk-in shower you only ever operate it standing, so a higher, waist-to-chest-level valve (around 45 inches) is more comfortable and keeps you out of the initial cold-water blast when you turn it on.

If you’re converting a tub to a shower, don’t just leave the old valve at 30 inches — it’ll feel awkwardly low for a standing-only shower. Plan to relocate it up to the 42–48 inch band while the wall is open. And cap or remove the old tub spout drop; a leftover spout stub-out behind tile is a future leak waiting to happen. Speaking of which, if you ever notice a spout dripping after the wall is closed, our piece on a tub spout leaking hot water when the water is off explains whether it’s the spout or the valve cartridge at fault.

What about the hot and cold supply lines and the diverter?

Standard residential tub/shower valves use 1/2-inch supply lines — hot on the left, cold on the right as you face the valve — feeding the valve’s clearly marked inlets. The shower outlet exits the top of the valve and the tub outlet exits the bottom; on a single-handle combo, the diverter that sends water up to the shower head usually lives in the tub spout itself, not the valve.

A few non-negotiables when you plumb the rough-in:

1. Hot left, cold right. Pressure-balance valves are built to this convention. Reverse them and your handle will read backwards forever.
2. Secure the valve to a brace. Screw the valve to a 2×4 cross-brace between studs so it can’t shift when someone yanks the handle. A floating valve cracks tile and loosens connections.
3. Use a drop-ear elbow for the spout and shower arm. These threaded, screw-anchored fittings give the spout nipple and shower arm something solid to thread into. Don’t rely on the pipe alone.
4. Pressure-test before closing the wall. Run the lines up to pressure and check every joint while you can still see them.

On the diverter question: most modern combos use a lift-rod or pull-up diverter integrated into the tub spout. That means your spout’s distance from the wall (the nipple length) actually matters — too long and the diverter won’t fully seal, sending water out both the spout and head at once. Match the spout to the nipple length its manufacturer specifies. If your existing spout looks off-kilter after install, our guide on a bent or crooked tub spout walks through whether to re-seat or replace it.

What’s the most common rough-in mistake — and how do I avoid it?

The number-one mistake is setting the valve depth from the wrong surface, so the trim won’t seat once tile is on. The fix is to always measure valve depth to your finished wall face and height to your finished floor — never to bare studs or subfloor. Build a quick mock-up of your wall layers and measure against that.

The runner-up mistakes, in rough order of how often I see them:

• Forgetting tub height. The valve is measured from the finished tub floor, which sits several inches above the subfloor. Measure after the tub is set, or account for its exact height.
• Off-center alignment. Spout, valve, and head not sharing one vertical line. Snap a chalk line first.
• Hot and cold reversed. Double-check left/right before sweating or crimping connections.
• No access or bracing. A valve that isn’t anchored will move, and a soldered-in valve with no access panel makes future cartridge swaps miserable.
• Spout nipple wrong length. Causes diverter leaks and a spout that stands too far off or too tight to the wall.

If you’re replacing an old valve rather than starting fresh, the rough-in is partly dictated by what’s already in the wall — but you still want to verify these heights and correct anything that’s wildly off while you have access. And once everything’s running, knowing how to spot trouble early helps; our walkthrough on fixing a leaking bathtub faucet quickly is a handy companion for the maintenance years ahead.

FAQ

How high off the floor should a tub/shower valve be?

For a tub/shower combo, 28–32 inches above the finished tub floor, with 30 inches as the typical default. For a shower-only stall, raise it to 42–48 inches since you only operate it standing. Always measure to the finished surface, not the subfloor or framing.

What is the rough-in height for a shower head?

The shower arm should exit the wall at 72–78 inches above the finished floor for most households, and up to 80 inches if taller users will use it. Remember the head and arm add a few more inches of reach above the outlet, so 78 inches usually clears even tall users comfortably.

How far should a tub shower valve stick out from the wall?

It shouldn’t stick out at all — the valve body sits inside the wall, and the plaster guard should end up flush with your finished wall surface (tile plus backer board and thinset). The stamped depth range on the plaster guard tells you the acceptable finished-wall thickness, usually about 1/2 inch to 1-3/4 inches off the framing.

Are tub shower valve rough in dimensions the same for all brands?

The heights and 1/2-inch supply sizes are industry-standard and interchangeable across most brands, so a 30-inch valve and 4-inch spout work regardless of make. The depth setting and trim compatibility, however, are brand- and model-specific — a Moen trim won’t fit a Delta valve body, so match trim to valve. Always confirm against your specific valve’s installation sheet.

Can I rough in the valve before the tub is installed?

You can, but you must know the exact finished height of your tub deck and account for it, because the valve and spout heights are referenced from the finished tub floor, not the subfloor. Many pros set the tub first, then mark valve and spout heights directly off the installed rim to eliminate guesswork.

What size are the supply lines for a tub shower valve?

Standard residential tub/shower valves use 1/2-inch hot and cold supply lines, hot on the left and cold on the right as you face the valve. The shower outlet leaves the top of the valve and the tub outlet the bottom; use 1/2-inch pipe up to the shower arm and down to the spout as well.

A note on getting it right the first time

Rough-in dimensions feel intimidating because the wall closes over your work and any error becomes permanent. But the standards exist precisely so you don’t have to guess — 30 inches for the valve, 4 inches above the rim for the spout, 72–78 inches for the head, plaster guard flush with finished tile, 1/2-inch supplies. Measure to finished surfaces, anchor everything solidly, keep your centerline true, and pressure-test before you close the wall. Do those five things and your shower will look factory-clean and run leak-free for decades.
