What Is the Right M5 Screw Tap Hole Size for Faucet Handles and Mounting?

Getting the m5 screw tap hole size right is the difference between a faucet handle that snugs down tight and one that strips its threads on the first turn. An M5 screw shows up all over bathroom and kitchen fixtures — handle set screws, escutcheon plates, mounting brackets under the sink, and the little grub screws that lock a lever onto a cartridge stem. The trouble is that “M5” tells you the screw is 5 mm nominal diameter, but it says nothing about what hole you should drill. And the correct hole depends entirely on one question: are you cutting fresh threads into metal (tapping), or just letting the screw slide through (clearance)?

This guide answers both, in plain numbers you can take to your drill, plus the specific quirks you run into on faucets: brass versus zinc bodies, coarse versus fine pitch, and what to do when a tapped hole strips out. Let’s get you the exact drill bit.

What Size Hole Do You Drill to Tap an M5 Thread?

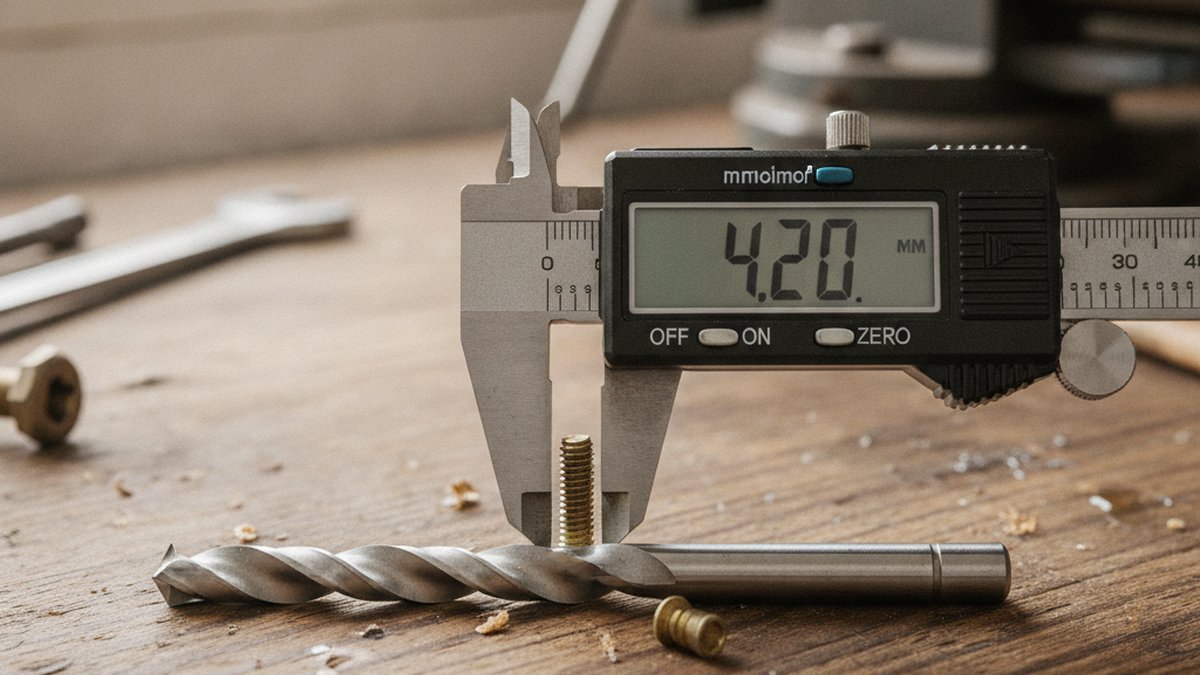

Drill a 4.2 mm hole to tap a standard M5 × 0.8 (coarse) thread. That single number covers the vast majority of faucet hardware you’ll ever tap, because coarse pitch is the default for M5 unless a spec sheet says otherwise.

Here’s the logic behind the number, because it helps you adapt when you hit an odd fastener. A tap doesn’t remove all the material inside a hole — it cuts a helical groove into the wall. So the drilled hole (the “tap drill” or “pilot”) has to be smaller than the 5 mm screw so there’s material left for the tap to carve into. The amount of material left is the thread engagement, usually targeted around 75%. The formula is simple: tap drill = major diameter − pitch. For M5 × 0.8 that’s 5 − 0.8 = 4.2 mm. For M5 × 0.5 (fine) it’s 5 − 0.5 = 4.5 mm.

Drill too small and the tap binds, the flutes clog, and in soft zinc or brass you’ll snap the tap off inside the hole — a genuine nightmare to extract. Drill too big and you cut shallow threads with only 50–60% engagement, which strip the moment you torque the screw. The 4.2 mm target hits the sweet spot: strong threads, clean cutting.

Coarse vs. fine M5 — how do you tell which one you have?

If you didn’t buy the screw with a spec, measure the thread pitch. Coarse M5 × 0.8 has threads spaced 0.8 mm apart; fine M5 × 0.5 has them 0.5 mm apart, so they look noticeably tighter and finer. The easiest field test is a thread pitch gauge (a couple of dollars), but you can also lay the screw against a steel ruler and count crests over 5 mm — coarse gives you about 6 crests, fine gives you 10. On faucet hardware, coarse is far more common; fine M5 shows up mostly on precision valve internals and some imported cartridge stems.

What’s the Difference Between a Tap Hole and a Clearance Hole for M5?

A tap hole (4.2 mm) is where you cut threads so the screw bites into the part; a clearance hole (5.3–5.5 mm) is bigger than the screw so it slides straight through without grabbing. Confusing the two is the single most common mistake DIYers make when replacing faucet handles — and it’s an easy one to avoid once you know which part does the gripping.

Think about a typical faucet handle. The handle itself usually has a clearance hole so the set screw passes through it, and the screw actually threads into the metal cartridge stem or a tapped boss underneath. So if you’re drilling out a handle, you want the bigger clearance hole; if you’re creating fresh threads in a bracket or stem, you want the smaller 4.2 mm tap hole. Get them backwards and either the screw won’t pass through, or it spins uselessly with nothing to bite.

For almost every faucet job, a 5.5 mm clearance hole is the safe default — it leaves a hair of wiggle room so the handle seats without you fighting a too-tight fit. Step up to 5.8 mm only if the part has a thick powder-coat or the holes need to line up across two mismatched plates. This handle-versus-stem distinction is exactly the thing that trips people up, and it’s covered in practical detail in our guide on how to change bathroom faucet knobs without calling a plumber.

What Drill Bit and Tap Do You Actually Need for M5 on a Faucet?

You need a 4.2 mm drill bit and an M5 × 0.8 tap for cutting threads, or a 5.5 mm bit for a clearance hole. If you don’t own a 4.2 mm bit, a #19 (4.22 mm) or a 5/32″ (3.97 mm) will get you close — but 5/32″ is slightly undersized and makes tapping harder in tough brass, so a true 4.2 mm metric bit is worth the couple of dollars.

Here’s the minimal kit for tapping M5 threads into a faucet bracket or repair boss:

• 4.2 mm HSS drill bit — the pilot hole for coarse M5.
• M5 × 0.8 taper tap — starts the thread easily; a plug tap finishes blind holes.
• Tap wrench or T-handle — never spin a tap with pliers; you’ll snap it.
• Cutting oil — even a drop of light machine oil dramatically reduces tap breakage in brass and zinc.
• Center punch — keeps the drill from wandering on curved chrome surfaces.

Technique matters as much as the numbers. Punch your mark, drill the 4.2 mm hole square to the surface, clear the chips, add a drop of oil, then turn the tap in a half-turn and back it off a quarter-turn to break the chip. Repeat. That back-and-forth rhythm is what keeps taps from binding in soft faucet metals. If the boss is a blind hole (doesn’t go all the way through), stop before the tap bottoms out and clear the debris — packed chips are how blind holes crack.

Does the faucet material change the hole size?

The hole size stays the same, but the material changes how forgiving you can be. Solid brass — the good stuff in quality faucet bodies — taps cleanly and holds threads well at 4.2 mm. Zinc alloy (zamak), common in budget handles, is softer and more brittle; stick exactly to 4.2 mm because oversizing even to 4.4 mm gives you weak threads that strip fast. Stainless steel is tough and work-hardens, so drill slowly, use plenty of oil, and never let the bit spin without cutting. For thin sheet-metal brackets under a sink, an M5 self-tapping or thread-forming screw into a 4.5 mm hole often beats cutting a full thread that has too few turns to hold.

Why Did My M5 Thread Strip Out — and How Do You Fix It?

An M5 thread usually strips because the pilot hole was drilled too big, the screw was over-torqued, or the base metal was soft zinc. The good news: you rarely need to replace the whole faucet part. You have three solid repair paths, from quickest to most durable.

1. Go up a size. If the M5 hole is wallowed out, re-drill and tap it to M6 (5 mm pilot for M6 × 1.0) and use a slightly larger screw. Simple, strong, works when there’s enough surrounding metal.
2. Install a thread insert. A helical (Heli-Coil–style) or solid threaded insert restores a perfect M5 thread inside an oversized hole. You drill to the insert’s spec, tap with the supplied tap, and thread the insert in. This is the professional fix and it’s surprisingly cheap.
3. Thread-locking epoxy as a last resort. For a low-stress cosmetic screw, a dab of threadlocker or two-part epoxy can rescue a marginal thread — but don’t trust it on anything structural like a wall bracket.

Prevention beats repair. Faucet set screws almost never need to be cranked hard — snug plus a token nudge is enough. Hand-tightening with a stubby Allen key gives you natural torque limiting; a long lever arm is how people shear threads. If you’re dealing with a screw that’s already seized rather than stripped, the removal tactics in our walkthrough on how to remove an old tap spindle that’s stuck or seized use the same penetrating-oil-and-patience approach that saves faucet threads.

Do You Need to Tap at All, or Can You Use a Self-Tapping Screw?

For most light faucet mounting, a self-tapping or thread-forming M5 screw into a 4.5 mm hole saves you the tap entirely and often makes a stronger joint in thin or soft metal. Cut threads are only worth the effort when the joint sees real load, gets taken apart repeatedly, or sits in solid brass thick enough to hold six or more full threads.

Here’s how to decide fast:

• Thin bracket, soft metal, one-time install? Self-tapping screw into a 4.5 mm hole. Forms its own threads, resists loosening from vibration.
• Handle set screw or anything you’ll remove often? Proper cut M5 × 0.8 thread at 4.2 mm — reusable and clean.
• Thick solid-brass boss, structural? Cut thread, and consider a thread insert from day one for maximum durability.

One caution: self-tapping screws want a hole matched to their root diameter, which is why 4.5 mm (not 4.2 mm) is the target for an M5 thread-former. Too tight and you’ll snap the screw head; too loose and it won’t grip. When in doubt on a soft handle, test on a scrap first. And remember that a faucet’s water-tight seal almost never depends on these screws — sealing is the O-rings’ and cartridge’s job — so you’re only fastening for mechanical hold, not pressure containment. If a fixture is actually leaking around a joint, that’s a different problem entirely, closer to what we cover in how to fix a leaky Moen faucet at home.

Quick Reference: All the M5 Hole Sizes in One Place

Save this section — it’s every number you’ll reach for when working M5 hardware on faucets and fixtures. When you’re standing at the drill press with a stripped handle, these are the figures that matter.

A note on inch equivalents, since a lot of North American drill sets are fractional: the closest bit to a 4.2 mm tap drill is a #19 (4.22 mm), which is effectively perfect. For the 5.5 mm clearance, 7/32″ (5.56 mm) is a clean stand-in. Don’t substitute a 3/16″ (4.76 mm) for a tap drill — it’s between coarse and fine and gives you a sloppy thread either way.

Author Note, Credibility & Standards

Written by the Arcora technical content team, drawing on hands-on faucet installation and bench repair experience. At arcorafaucet (www.arcorafaucet.com) we design, test, and sell kitchen and bathroom faucets, shower systems, and fixtures, and we field real installer questions like this one every week. The M5 dimensions here follow the ISO 261 / ISO 262 metric thread standards and standard 75%-engagement tap-drill practice used across the fastener industry — the same specs machinists and manufacturers rely on. Our own faucet hardware is pressure- and cycle-tested and backed by warranty, and our set screws and mounting fasteners are spec’d to these tolerances so replacement parts fit predictably. When you’re matching a screw to a hole on any fixture, measuring twice and drilling once is genuinely the whole game — and a $3 thread pitch gauge pays for itself the first time it saves you from stripping a handle.

FAQ

What size drill bit is needed for an M5 tap?

A 4.2 mm drill bit for a standard M5 × 0.8 coarse thread, or 4.5 mm for a fine M5 × 0.5. In fractional-inch terms, a #19 bit (4.22 mm) is the closest match to 4.2 mm and works perfectly.

What is the clearance hole size for an M5 screw?

5.5 mm for a normal fit, which is the right choice for most faucet handles and brackets where the screw just needs to pass through. Use 5.3 mm for a tighter, better-aligned fit or 5.8 mm if you need loose clearance around a thick finish.

Can I use a 4 mm or 4.5 mm hole to tap M5?

A 4 mm hole is too small for M5 × 0.8 and will make the tap bind or break, especially in soft zinc faucet parts. A 4.5 mm hole is correct for fine M5 × 0.5 but too large for coarse M5 × 0.8, where it gives weak, easily stripped threads. Stick with 4.2 mm for coarse.

Why does my faucet handle set screw keep stripping?

Usually because it’s over-tightened or the underlying zinc thread is worn. Set screws only need to be snug plus a small nudge — a short Allen key gives you natural torque control. If the thread itself is gone, install a thread insert or step up to M6 rather than forcing the M5 back in.

Is M5 the same as a 5 mm hole?

No. M5 means the screw is 5 mm at its major (outside) diameter, but you never drill a 5 mm hole for it. To thread into it you drill 4.2 mm and cut threads; to pass it through you drill 5.5 mm. A plain 5 mm hole is wrong for both jobs.

Do I need cutting oil to tap M5 in a brass faucet?

Yes, use it even though brass taps relatively easily. A drop of light cutting or machine oil reduces friction, gives cleaner threads, and sharply lowers the chance of snapping the tap in soft brass or zinc. Back the tap off a quarter-turn regularly to clear chips.
